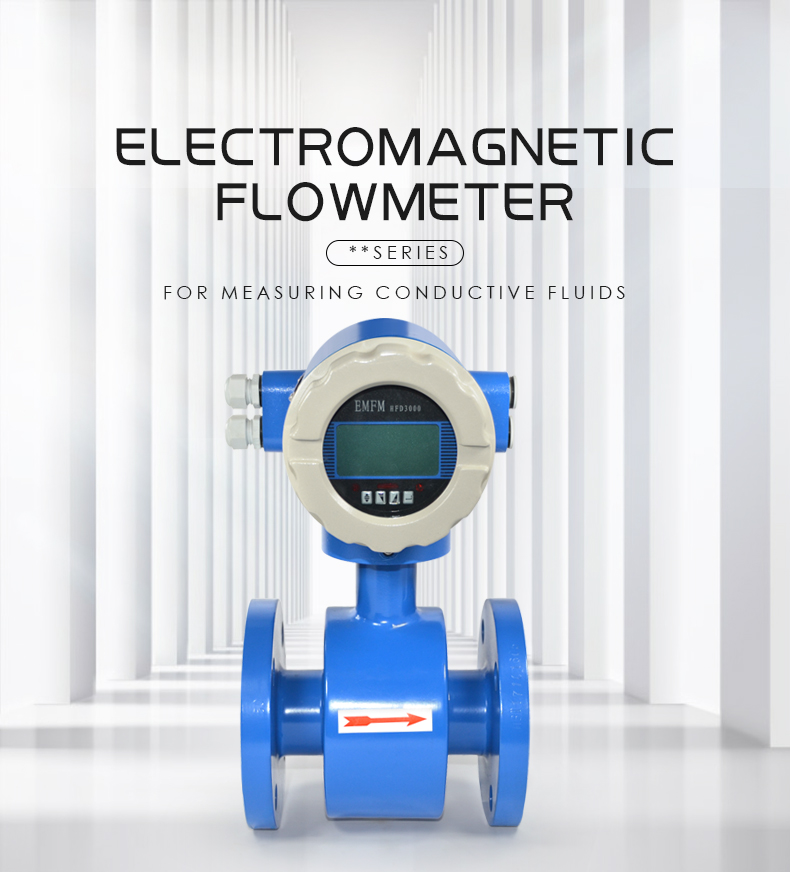

Электромагнитный расходомер CX-EMFM

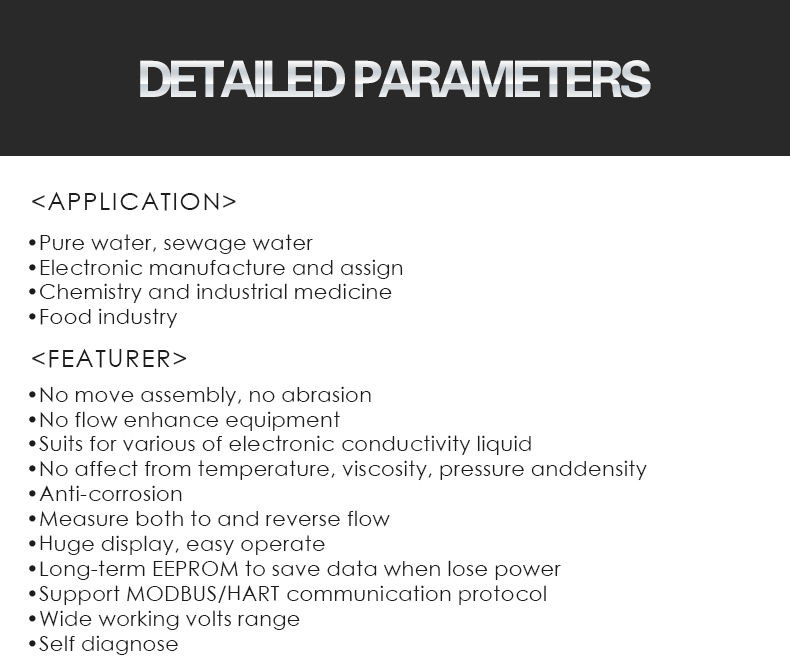

•No move assembly, no abrasion
•No flow enhance equipment
•Suits for various of electronic conductivity liquid
•No affect from temperature, viscosity, pressure anddensity

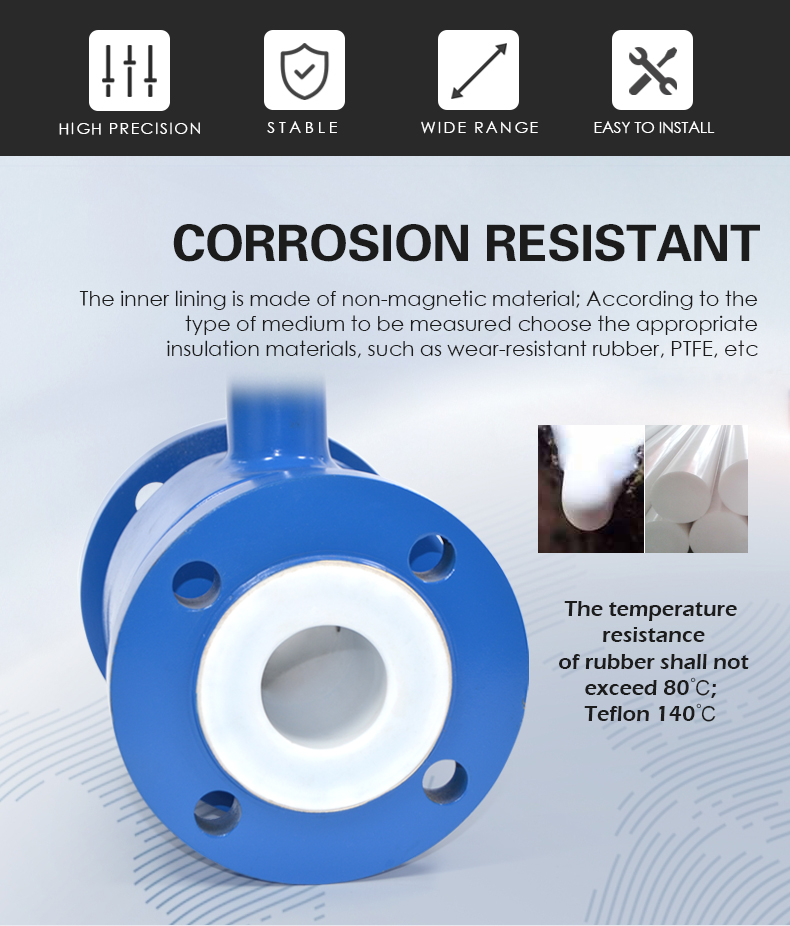

•Anti-corrosion
•Measure both to and reverse flow
•Huge display, easy operate
•Long-term EEPROM to save data when lose power
•Support MODBUS/HART communication protocol
•Wide working volts range
•Self diagnose
Features
| Wide measuring ranges | LCD display | High precision |
| Low pressure drop | Small size | Fast response |

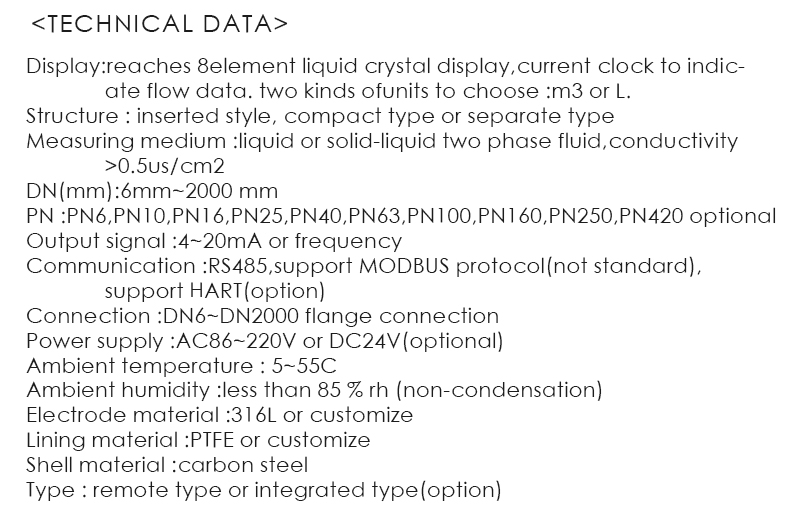

Technical Data

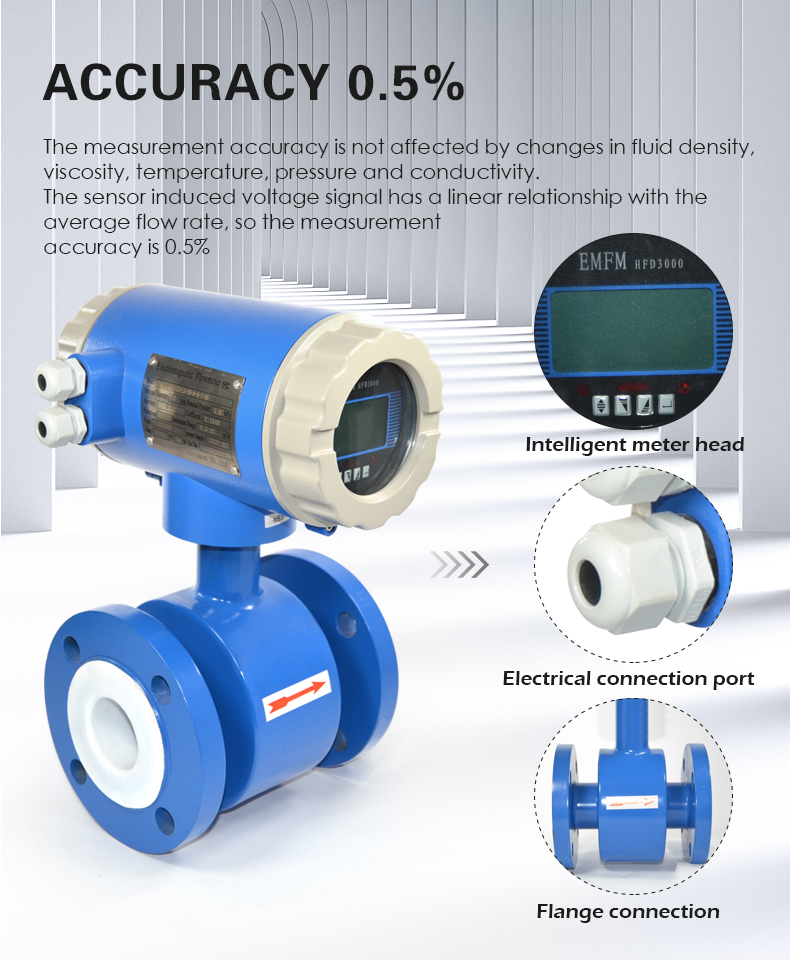

| Model Number: CX-EMFM | Accuracy: 0.5% |

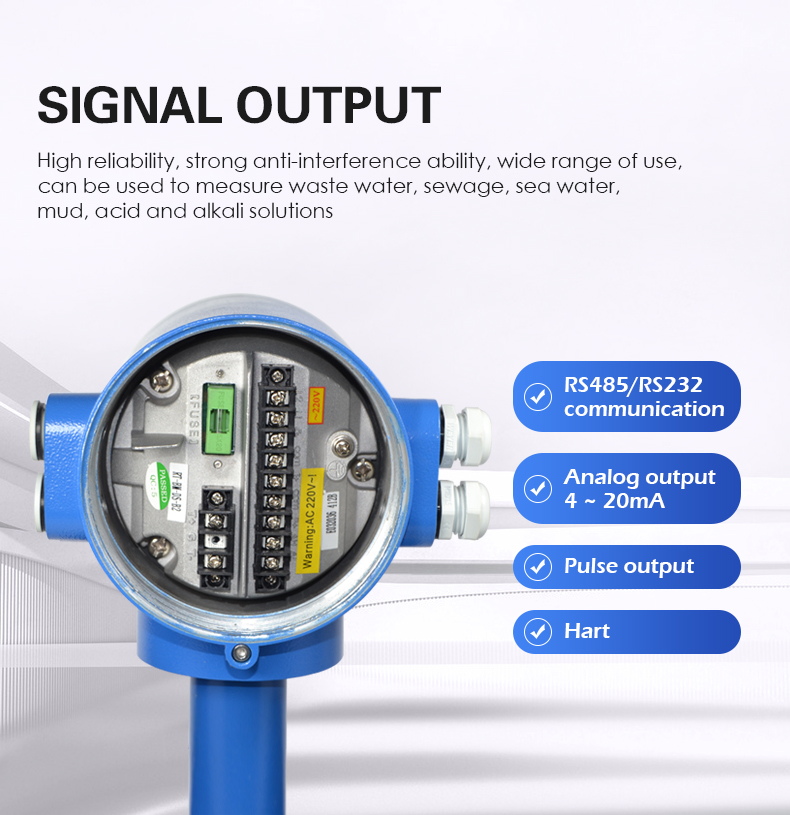

Communication: RS485/MODBUS protoco/HART | Output signal: 4~20mA or frequency |
Pressure: 0-20L/min | Connection:DN6~DN2000 |
Power: AC86~220V or DC24V(optional) | Working temperature: 5~55℃ |
Downloads
electromagnetic flowmeter-----
Dateiformat P D F
