Настенный ультразвуковой расходомер CX-WUFM

With distinctive features such as high precision,high reliability, high function and its low cost, flow meter is based onmicro-processing technology.

Features

Wide measuring ranges

LCD displayl

High precision
Low pressure dropSmall sizeFast response

Technical Data

Model Number: CX-WUFM

Accuracy: ±1%

Output:hart,RS485,4~20mA/0~20mA

Communication: RS485,HART

Protection grade: IP65

Power supply: DC8-36V/AC85~264V

Repetition: ±0.2%

Measuring pipe diameter: DN15~DN6000mm

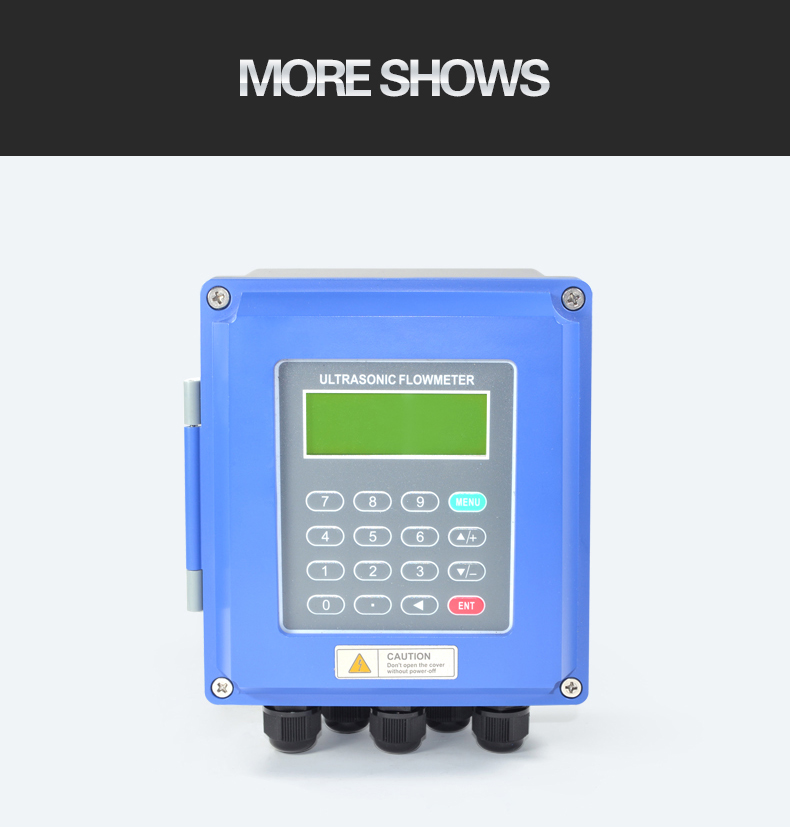

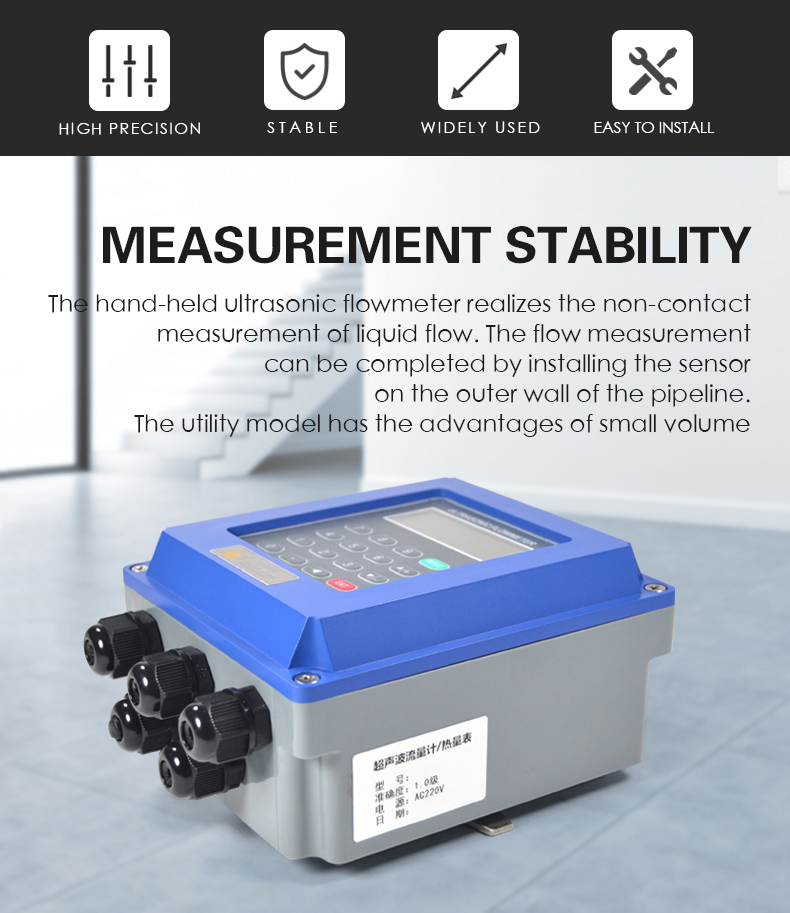

CX-WUFM wallmountedultrasonicflowmeter(图1)

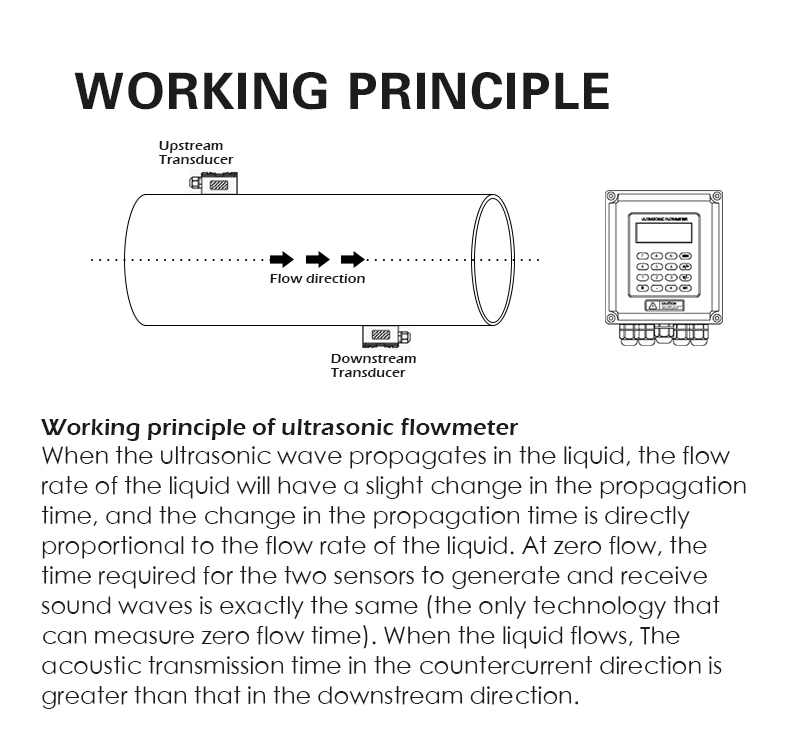

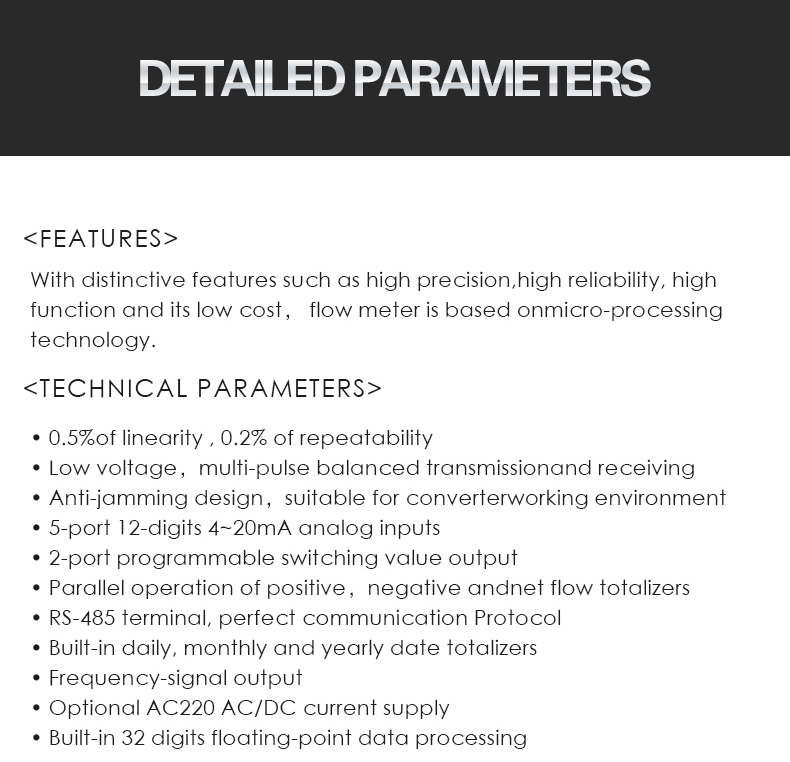

CX-WUFM wallmountedultrasonicflowmeter(图2)

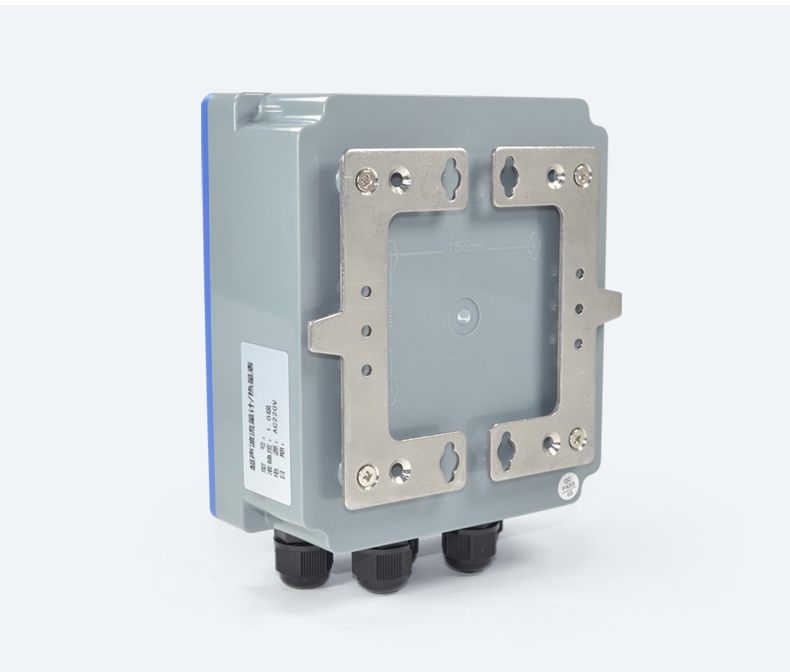

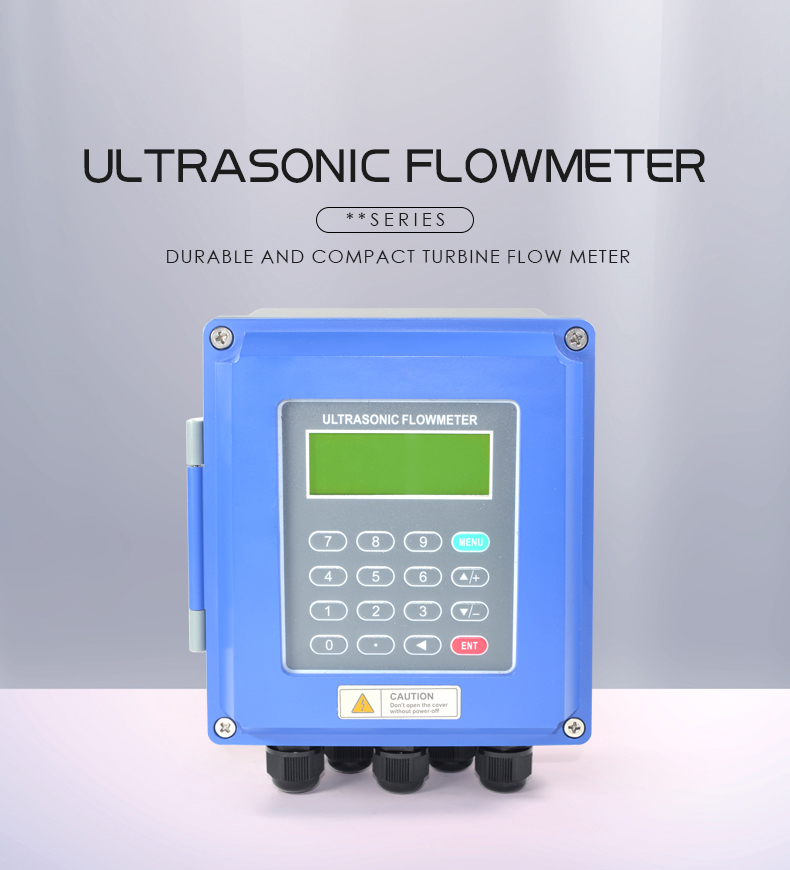

CX-WUFM wallmountedultrasonicflowmeter(图3)

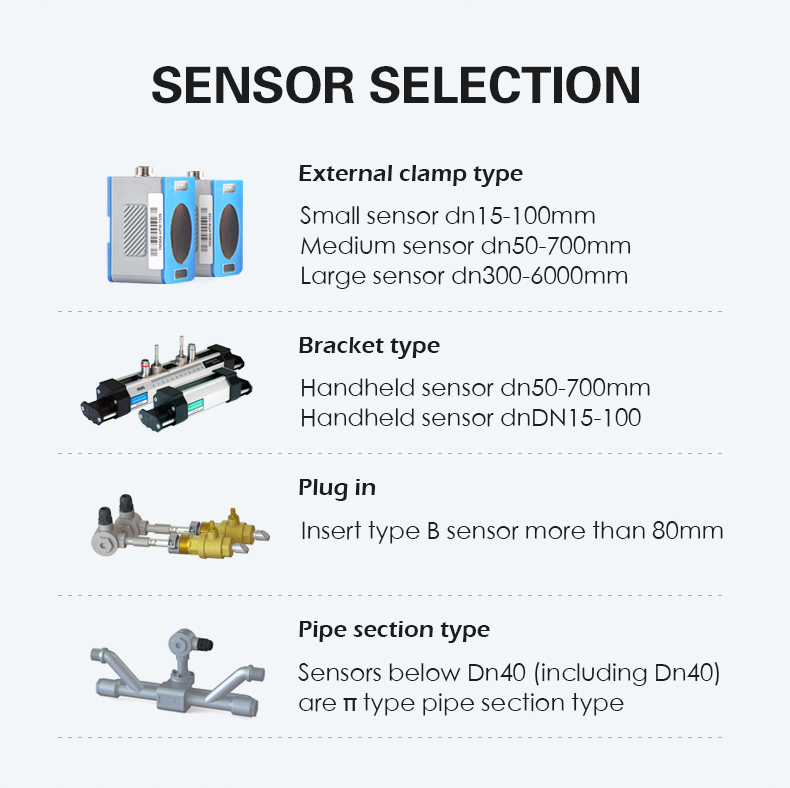

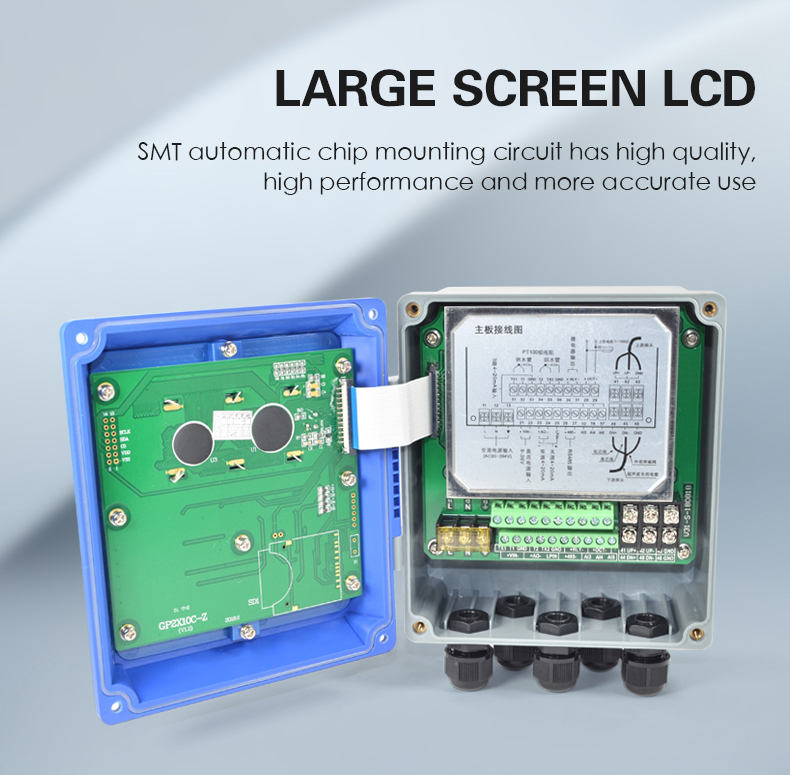

CX-WUFM wallmountedultrasonicflowmeter(图4)

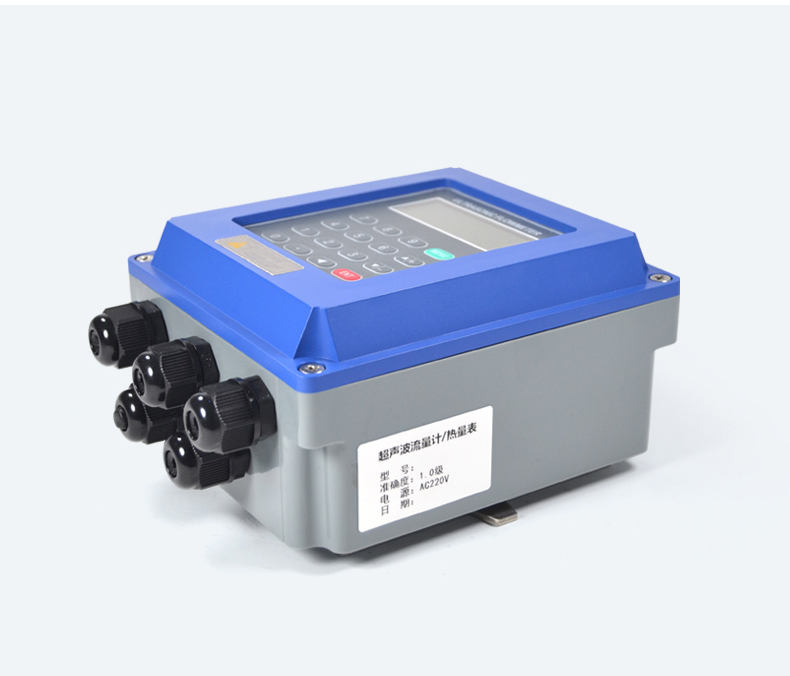

CX-WUFM wallmountedultrasonicflowmeter(图5)

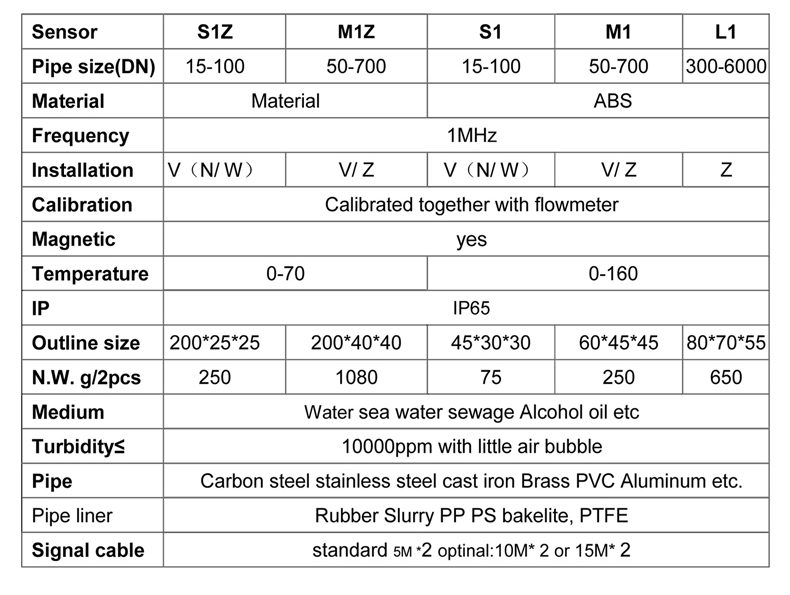

CX-WUFM wallmountedultrasonicflowmeter(图6)

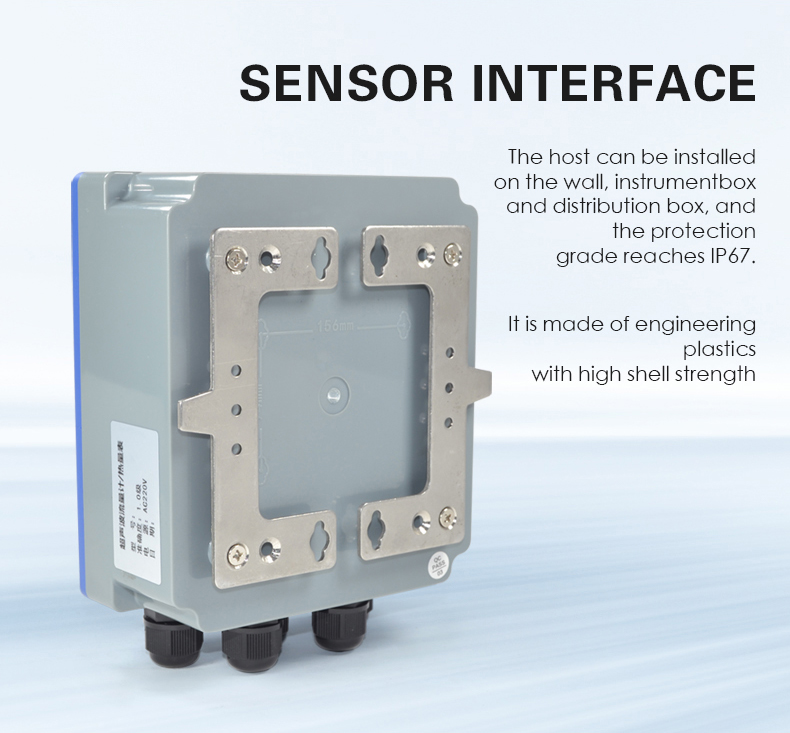

CX-WUFM wallmountedultrasonicflowmeter(图7)

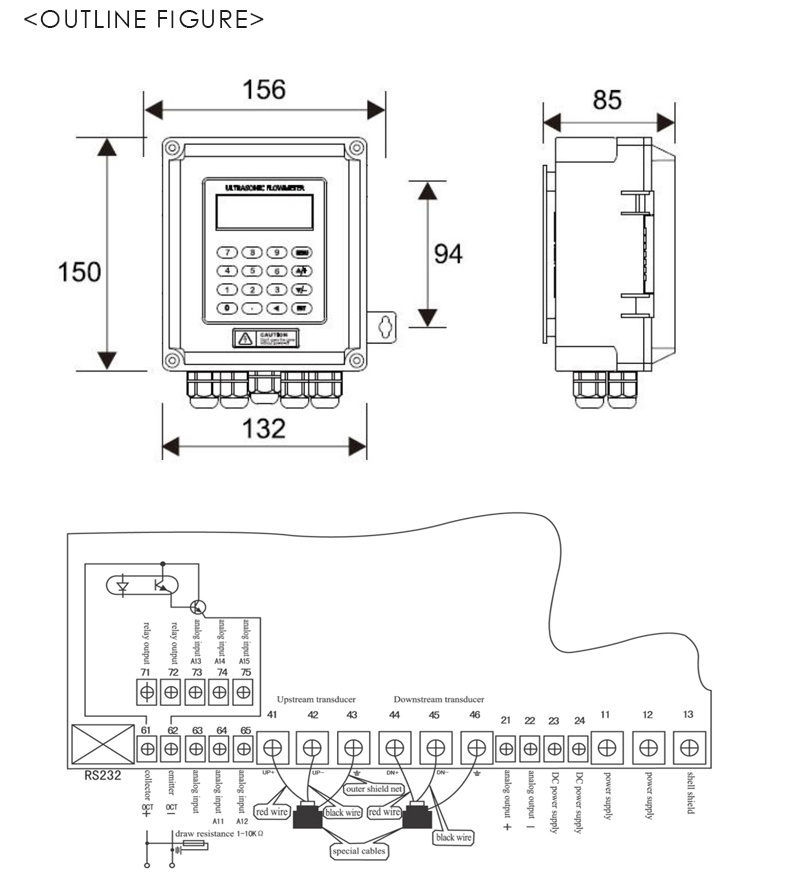

CX-WUFM wallmountedultrasonicflowmeter(图8)

CX-WUFM wallmountedultrasonicflowmeter(图9)

CX-WUFM wallmountedultrasonicflowmeter(图10)

CX-WUFM wallmountedultrasonicflowmeter(图11)

CX-WUFM wallmountedultrasonicflowmeter(图12)
